Shrink Chamber Machines
Shrink and seal a package in one operation using heat seal technology.
Shrink chamber machines have been designed to speed up pack lines by providing a heat shrinking and sealing method in one unit, taking just a few seconds to complete the process. Heat shrinking is widely used for packaging retail products because the clear wrap displays your products professionally while being secure and tamper-proof because the film takes the shape of the product. They can also be used for wrapping high-value products, such as engineering parts or electronics that can be easily damaged in transit.
Our shrink chamber machines all feature a roller mechanism that accommodates different heat shrink films including polyolefin, PVC, polyethylene, polythene along with micro-perforated film; these are all crystal clear films that are perfect for Point of Sale (POS). All of our machines include a 12 month return to base warranty (RTB).
- Our range are all floor-standing mounted on wheels for easy repositioning.
- Operated through a digital control panel with 6 programs available, including a seal only option.
- Shrink and seal a package in one operation using heat seal technology.
- Seal packages up to 620x800mm using the SC680 model.
- All products come with a full 12 month return to base manufacturer’s warranty.

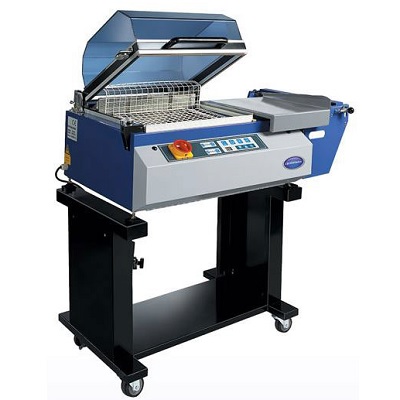

Model SC346 Optimax Shrink Chamber Machine
|
Model Type |
Optimax SC346 |
|
Power Supply |
240V Single Phase, 13A |
|
Machine Dimensions |
1120mm (L) x 660mm (W) x 550mm (H) |
|
Sealing Dimensions |
320mm x 460mm (DxL) |
|
Max Height of Package |
120mm |
|
Effective Power Consumption |
1.3-1.9kw |
|
Max Dimensions of Film Roll |
400mm x 250mm |
The Optimax branded SC346 heat shrink chamber is the bestselling model in the range. It both shrinks and seals a package in one operation by using heat seal technology. The SC346 has a very low power consumption and highly advanced electronic controls. It has maximum sealing dimensions of 320mm x 460mm. Runs from a 13A socket.

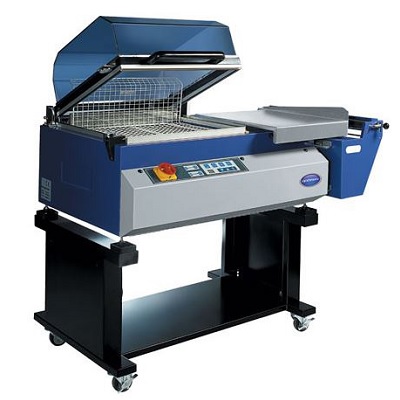

Model SC455 Optimax Shrink Chamber Machine
|
Model Type |
Optimax SC455 |
|
Power Supply |
240V Single Phase, 16A |
|
Machine Dimensions |
1320mm (L) x 820mm (W) x 645mm (H) |
|
Sealing Dimensions |
420mm x 550mm (DxL) |
|
Max Height of Package |
250mm |
|
Effective Power Consumption |
1.6-2.3kw |
|
Max Dimensions of Film Roll |
600mm x 250mm |
The Optimax branded SC455heat shrink chamber is a heavy-duty reliable machine with a good chamber capacity. It both shrinks and seals a package in one operation by using heat seal technology. The SC455 has an extremely low power consumption and highly advanced electronic controls. It has maximum sealing dimensions of 420mm x 550mm. Note the SC455 requires a minimum 16A power supply and will not run from a 13A socket (the SC346 model runs from a 13A socket

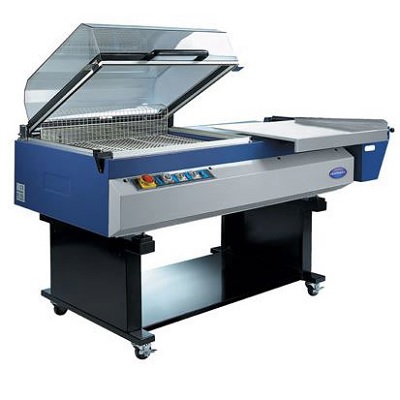

Model SC680 Optimax Shrink Chamber Machine
|
Model Type |
Optimax SC680 |
|
Power Supply |
415V Three Phase, 50/60Hz |
|
Machine Dimensions |
1575mm (L) x 1020mm (W) x 645mm (H) |
|
Sealing Dimensions |
620mm x 800mm (DxL) |
|
Max Height of Package |
250mm |
|
Effective Power Consumption |
2.3-3.4kw |
|
Max Dimensions of Film Roll |
800mm x 250mm |
The Optimax branded SC680 heat shrink chamber is the largest in the range, with maximum sealing dimensions of 620x800mm. It is a powerful and high capacity model which both shrinks and seals a package in one operation by using heat seal technology. The SC680 has highly advanced electronic controls. Note the SC680 requires 415V 3 phase supply.
