Strapping Machines
Packaging Midlands supplies a range of semi and fully automatic machines for any volume requirements.
Are you at the point where it is no longer viable for your business to strap packages using hand operated tools? If you are looking for that type of equipment, we have a full range of options available in our Pallet Strapping & Protection section of the site, but for those businesses that need to strap higher volumes investing in a strapping machine will deliver maximum cost and efficiency benefits to your business. All models come with a 12 month warranty (return to base).
We stock two types of strapping machines:
Semi-automatic: fast and reliable they are suitable for small to medium sized items. They require the user to manually feed strapping into the machine.
Automatic: suitable for larger and wider packages, and do not require the user to manually feed strapping into the machine.
Semi-automatic strapping machine
- Perfect for everyday use with uniformed parcels.
- Fast and reliable process.
- Easy to operate automatically tensions and seals the strapping around your items.
- Delivers a professional finish every time.
- Strong polypropylene strapping creates uniformed parcels every time.
- Strapping is fed into the machine manually.
- Easy to operate with minimum maintenance.
- 12 months return to base warranty (RTB).
Automatic strapping machine
- Must have time-saving addition to high volume packing operations.
- Can be integrated into a production line.
- Perfect for everyday use when packing large and wide packages.
- There is no need to feed the strapping manually.
- Simple to use and reliable.
- Load the strapping easily by inserting the tip of the strap into machine.
- Portable design with locking castors for added safety.
- Easy to operate with minimum maintenance.
- 12 months return to base warranty (RTB).

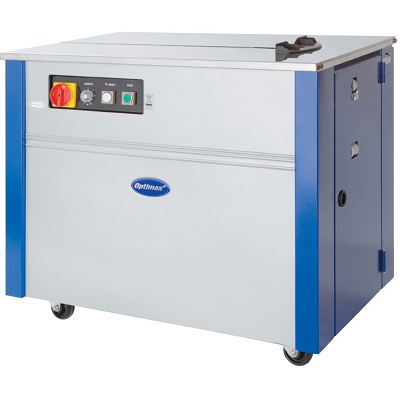

Semi-Automatic Strapping Machine Optimax TMS300
Next Day Delivery is Available.
|
Model Type |
Optimax TMS300 |
|
Use |
Semi-Automatic Pallet Strapping |
|
Dimensions |
920mm(w) x 595mm(d) x 785mm(h) |
|
Strap Width Required |
6mm – 15.5mm |
|
Strapping Speed |
2.5 seconds / cycle (60Hz) |
|
Power Supply |
230v / 50Hz (single phase) |
|
Power Consumption |
0.3kw |
The TMS300 is a reliable semi-automatic pallet strapping machine that is simple to operate. Feedthe strapping around the package and the machine automatically tensions and heat seals the strap. Accepts polyprop strapping from 6mm – 16mm wide on 200mm or 280mm cores. Designed to provide a quick and efficient method of strapping single or multiple packages of varying sizes. The machine features external tension control, a safety cut-out switch when the top is opened, and the enclosed cabinet design keeps the strapping clean and dust free.

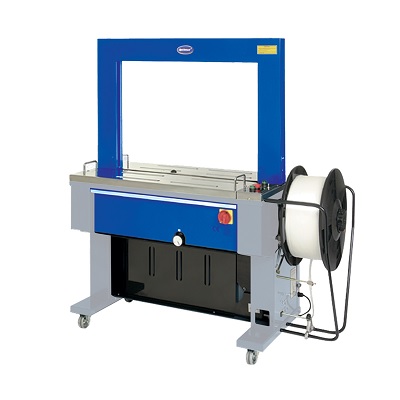

Fully Automatic Strapping Machine Optimax TRS600
|
Model Type |
Optimax TRS600 |
|
Use |
Automatic Pallet Strapping |
|
Dimensions |
1430mm(w) x 620mm(d) x 1540mm(h) |
|
Strap Width Required |
9mm – 15.5mm |
|
Strapping Speed |
2.2 seconds / cycle (60Hz) |
|
Power Supply |
230v / 50Hz (single phase) |
|
Power Consumption |
1.2kw |
The TRS600 Automatic machine is designed for strapping high volumes of cartons and packages. Simply place the pack under the arch, at the press of a button the machine automatically straps the pack. The TRS600 is capable of up to 27 straps per minute providing an excellent solution to your strapping needs. The main features are external tension control – to suit pack application, short feed sensor – to prevent misfeeds. A range of arch sizes are available to suit your application.

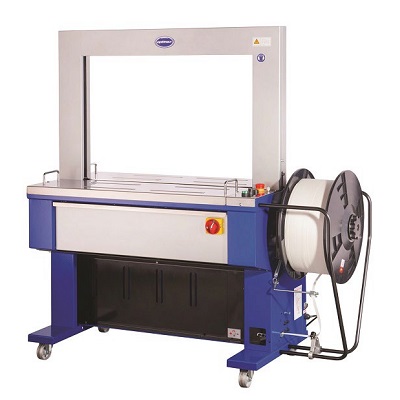

Fully Automatic Strapping Machine Optimax AFS900
|
Model Type |
Optimax AFS900 |
|
Use |
Fully Automatic Pallet Strapping |
|
Dimensions |
1430mm(w) x 620mm(d) x 1540mm(h) |
|
Strap Width Required |
9mm or 12mm |
|
Strapping Speed |
2 seconds / cycle (60Hz) |
|
Power Supply |
240v / 50Hz (single phase) |
|
Power Consumption |
1.2kw |
|
Tension |
Electronic strap tension control |
|
Activation |
3 methods – foot pedal, console button, ball switch |
|
Control |
Reliable control head |
The Optimax branded AFS900 evolve automatic machine is designed for strapping high volumes of cartons and packages. It is based on the proven TRS600 platform, with additional features to increase productivity and reduce downtime. It is one of the most advanced strapping machines in its class. The ASF900 accepts polyprop strapping at both 9mm and 12mm widths (pre-set at 12mm unless otherwise specified). This model comes with an arch size of 850mm (w) x 600mm (h).The AFS900 is capable of up to 35 straps per minute, providing an efficient solution to any businesses strapping needs.

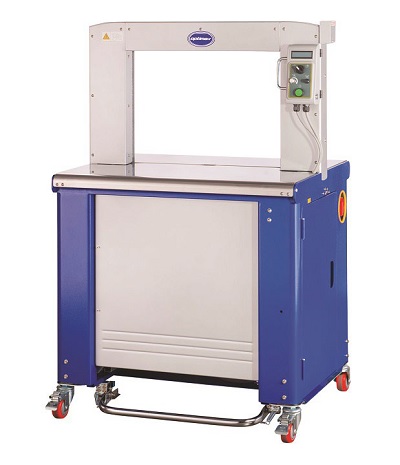

High Speed Automatic Strapping Machine Optimax HQS80
|
Model Type |
Optimax HQS80 |
|
Use |
Fully Automatic High Speed Pallet Strapping |
|
Dimensions |
1200mm(w) x 652mm(d) x 1425-1525mm(h) |
|
Arch Size |
650mm (width) x 500mm (height) |
|
Max Package Size |
600mm x 450mm |
|
Strap Width Required |
5mm or 12mm |
|
Strapping Speed |
1 second / cycle |
|
Power Supply |
240v / 50Hz (single phase) |
|
Power Consumption |
500W |
|
Tension |
Strapping tension range of 1kg-45kg |
|
Machine |
167kg |
The Optimax branded HQS80 is an innovative world class highspeed strapping machine designed for high volume users. It is capable of up to 60 straps per minute as opposed to 35 straps on the AFS900 and 27 straps on the TRS600. The HQS80 is also equipped with all industry standard and additional operator-friendly safety features. The HQS80 is designed for strap widths of either 5mm or 12mm (always pre-set to 12mm unless otherwise specified). The arch size on the HQS80 is 650x500mm, meaning it can take a maximum package size of 600x450mm.
